还记得差不多三年前，第一次爬马蜂窝网站的数据，所有的请求都是没有加密，可以任意请求，自从出了那事之后，所有的api就开启了加密。
我好奇的打开了下几年前的代码，发现现在还是可以请求，且数据还是正确有效，估计是服务没停，只是现在从网站上没法查询到。
但是这些都不是今天的重点，今天的重点是分析一下现在马蜂窝机票服务的加密规则。
开始
作案工具
1.一台能上网的电脑
2.chrome浏览器
数据分析
1.打开马蜂窝站点，这里选择一条作案路线，2019-11-19从上海到厦门的机票:
https://www.mafengwo.cn/flight/#/list?departCity=上海&departCode=SHA&destCity=厦门&destCode=XMN&departDate=2019-11-19&status=0&withChild=0
2.查找请求数据的api
开启f12，点击Network=>xhr,分析发现有一个ajax请求
https://fdspl-traffic.mafengwo.cn/fdspl/v1/flightList/search
请求方式为post(json)
参数为:
{"tfb_req_id":"242b98c1697e8eab088f7c8b8ffb81dc","departCode":"SHA","destCode":"XMN","departDate":"2019-10-19","trip":0,"adultNums":1,"hasChildren":false,"queryTimes":1,"signKey":"e6f54d0167003a4d5c0519bb18f49e47","depDateAndFlightNo":"","sign":"d365ebeb04b4b1db5be4a24fb3d27355"}
tfb_req_id 请求的随机数
departCode 出发城市的标识
destCode 到达城市的标识
departDate 出发的时间
trip 旅程 单程还是往返
adultNums 成人的数量
hasChildren 是否有孩子
queryTimes 第几次请求，后面会说到
signKey 签名的key（guid去除-的结果，通过源码知道）
sign 加密的签名
3.分析加密方法

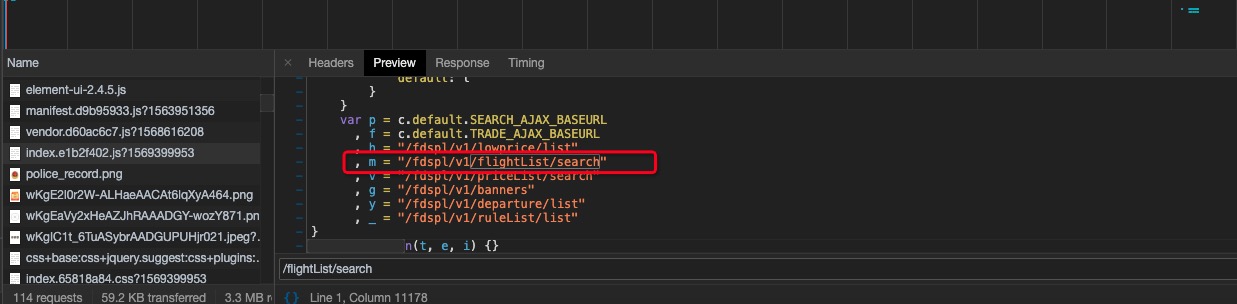

通过请求的域名中的部分路由 flightList/search 定位到一个变量（在js中找到,index.***.js）

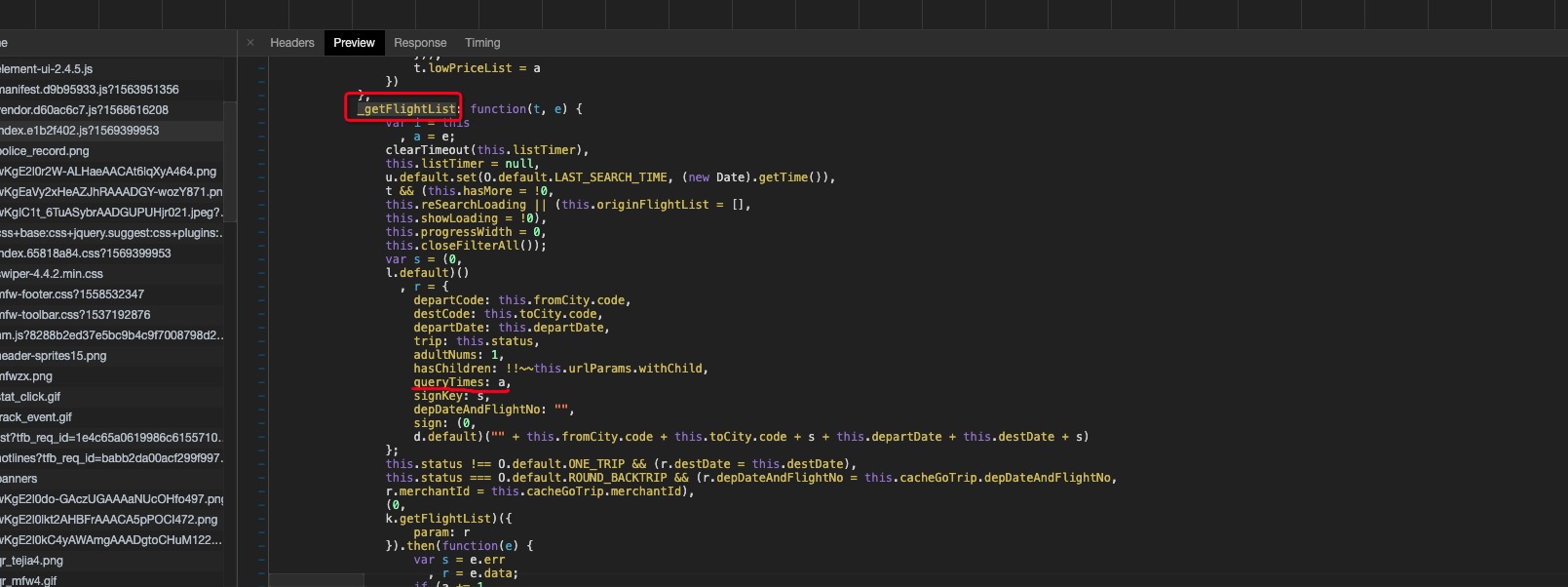

接着通过参数分析我们定义到获取请求的方法
这个js代码看着复杂，其实不会，因为是被混淆过的，webpack打包之后的代码，但是我们也可以利用工具进行一步步的抽丝剥茧。

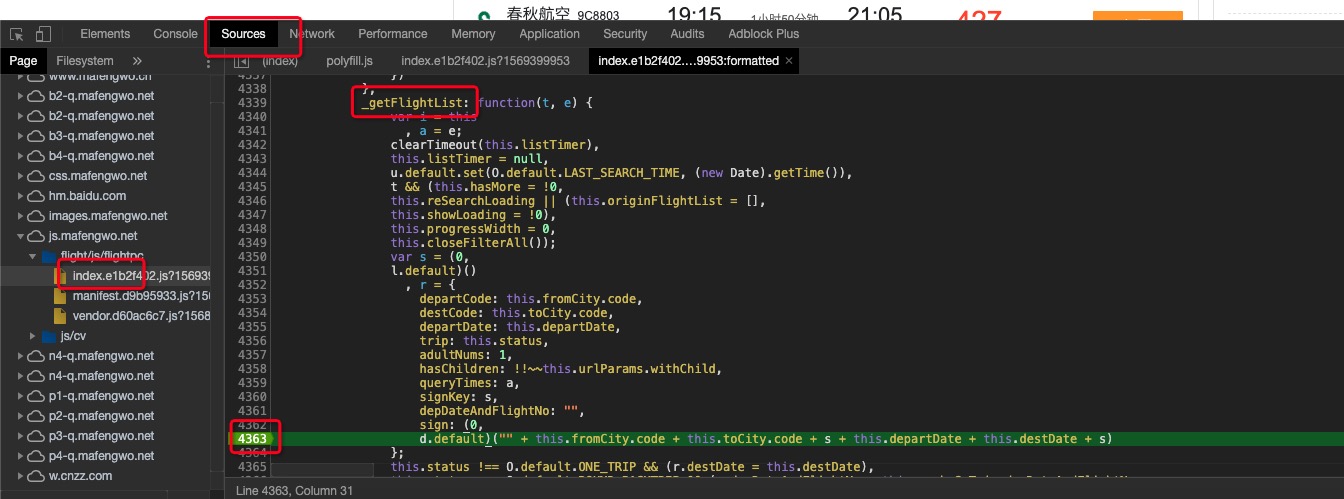

利用chrome的提调试，进行方法的定位与分析
通过分析会发现参数的加密方法以及调用的方法
function s(t, e) {
var i = (65535 & t) + (65535 & e);
return (t >> 16) + (e >> 16) + (i >> 16) << 16 | 65535 & i
}
....
function v(t, e) {
return function (t, e) {
var i, a, s = p(t), r = [], n = [];
for (r[15] = n[15] = void 0,
s.length > 16 && (s = d(s, 8 * t.length)),
i = 0; i < 16; i += 1)
r[i] = 909522486 ^ s[i],
n[i] = 1549556828 ^ s[i];
return a = d(r.concat(p(e)), 512 + 8 * e.length),
u(d(n.concat(a), 640))
}(h(t), h(e))
}
what? 这个是什么鬼，我咋分析加密算法，然后再转化成python的加密算法呢。
答案是，这些都不用你做，你只需要分析出是调用哪个方法，然后进行封装就好。
4.进行加密方法的封装
借用js2py这个类库进行js代码的解析与运行
在刚刚的获取的js方法基础上，我们再加一个加密的方法
function sign(t) {
return f(m(t));
}
python获取加密算法的封装
import js2py
js = js2py.EvalJs() //生成
js_script='''
function s(t, e) {
var i = (65535 & t) + (65535 & e);
return (t >> 16) + (e >> 16) + (i >> 16) << 16 | 65535 & i
}
...
function sign(t) {
return f(m(t));
}
'''
js.execute(js_script)
sign = js.sign(t)
5.模拟数据的请求
分析可以知道请求参数中的queryTimes为第几次请求，这个是根据第一次请求的结果中返回的参数needQueryMore决定
needQueryMore 如果为true，则需要持续的发起请求，直到为false为止
其中存在两种情况，第一种为有机票数据，第二种没有，猜测是缓存更新机制的问题，1.生成缓存 2.需要更新缓存
以下为完全的python请求代码
import js2py
import time
import requests
def log(result):
'''打印数据
'''
for r in result['data']['list']:
segment = r['goTrip']['segmentMOList'][0]
depart_desc = '出发:%s-%s-%s-%s' % (segment['org_city_name'],
segment['org_airport_name'], segment['org_airport_quay'], segment['arr_time'])
dest_desc = '到达:%s-%s-%s-%s' % (segment['dst_city_name'],
segment['dst_airport_name'], segment['dst_airport_quay'], segment['dep_time'])
price_desc = '价格:%s' % (r['priceDigests'][0]['settlePrice'])
time_desc = '耗时:%s' % (segment['fly_time'])
print(segment['airline_name'], depart_desc,
dest_desc, price_desc, time_desc)
js_script = '''
function s(t, e) {
var i = (65535 & t) + (65535 & e);
return (t >> 16) + (e >> 16) + (i >> 16) << 16 | 65535 & i
}
function r(t, e, i, a, r, n) {
return s(function (t, e) {
return t << e | t >>> 32 - e
}(s(s(e, t), s(a, n)), r), i)
}
function n(t, e, i, a, s, n, o) {
return r(e & i | ~e & a, t, e, s, n, o)
}
function o(t, e, i, a, s, n, o) {
return r(e & a | i & ~a, t, e, s, n, o)
}
function c(t, e, i, a, s, n, o) {
return r(e ^ i ^ a, t, e, s, n, o)
}
function l(t, e, i, a, s, n, o) {
return r(i ^ (e | ~a), t, e, s, n, o)
}
function d(t, e) {
var i, a, r, d, u;
t[e >> 5] |= 128 << e % 32,
t[14 + (e + 64 >>> 9 << 4)] = e;
var p = 1732584193
, f = -271733879
, h = -1732584194
, m = 271733878;
for (i = 0; i < t.length; i += 16)
a = p,
r = f,
d = h,
u = m,
f = l(f = l(f = l(f = l(f = c(f = c(f = c(f = c(f = o(f = o(f = o(f = o(f = n(f = n(f = n(f = n(f, h = n(h, m = n(m, p = n(p, f, h, m, t[i], 7, -680876936), f, h, t[i + 1], 12, -389564586), p, f, t[i + 2], 17, 606105819), m, p, t[i + 3], 22, -1044525330), h = n(h, m = n(m, p = n(p, f, h, m, t[i + 4], 7, -176418897), f, h, t[i + 5], 12, 1200080426), p, f, t[i + 6], 17, -1473231341), m, p, t[i + 7], 22, -45705983), h = n(h, m = n(m, p = n(p, f, h, m, t[i + 8], 7, 1770035416), f, h, t[i + 9], 12, -1958414417), p, f, t[i + 10], 17, -42063), m, p, t[i + 11], 22, -1990404162), h = n(h, m = n(m, p = n(p, f, h, m, t[i + 12], 7, 1804603682), f, h, t[i + 13], 12, -40341101), p, f, t[i + 14], 17, -1502002290), m, p, t[i + 15], 22, 1236535329), h = o(h, m = o(m, p = o(p, f, h, m, t[i + 1], 5, -165796510), f, h, t[i + 6], 9, -1069501632), p, f, t[i + 11], 14, 643717713), m, p, t[i], 20, -373897302), h = o(h, m = o(m, p = o(p, f, h, m, t[i + 5], 5, -701558691), f, h, t[i + 10], 9, 38016083), p, f, t[i + 15], 14, -660478335), m, p, t[i + 4], 20, -405537848), h = o(h, m = o(m, p = o(p, f, h, m, t[i + 9], 5, 568446438), f, h, t[i + 14], 9, -1019803690), p, f, t[i + 3], 14, -187363961), m, p, t[i + 8], 20, 1163531501), h = o(h, m = o(m, p = o(p, f, h, m, t[i + 13], 5, -1444681467), f, h, t[i + 2], 9, -51403784), p, f, t[i + 7], 14, 1735328473), m, p, t[i + 12], 20, -1926607734), h = c(h, m = c(m, p = c(p, f, h, m, t[i + 5], 4, -378558), f, h, t[i + 8], 11, -2022574463), p, f, t[i + 11], 16, 1839030562), m, p, t[i + 14], 23, -35309556), h = c(h, m = c(m, p = c(p, f, h, m, t[i + 1], 4, -1530992060), f, h, t[i + 4], 11, 1272893353), p, f, t[i + 7], 16, -155497632), m, p, t[i + 10], 23, -1094730640), h = c(h, m = c(m, p = c(p, f, h, m, t[i + 13], 4, 681279174), f, h, t[i], 11, -358537222), p, f, t[i + 3], 16, -722521979), m, p, t[i + 6], 23, 76029189), h = c(h, m = c(m, p = c(p, f, h, m, t[i + 9], 4, -640364487), f, h, t[i + 12], 11, -421815835), p, f, t[i + 15], 16, 530742520), m, p, t[i + 2], 23, -995338651), h = l(h, m = l(m, p = l(p, f, h, m, t[i], 6, -198630844), f, h, t[i + 7], 10, 1126891415), p, f, t[i + 14], 15, -1416354905), m, p, t[i + 5], 21, -57434055), h = l(h, m = l(m, p = l(p, f, h, m, t[i + 12], 6, 1700485571), f, h, t[i + 3], 10, -1894986606), p, f, t[i + 10], 15, -1051523), m, p, t[i + 1], 21, -2054922799), h = l(h, m = l(m, p = l(p, f, h, m, t[i + 8], 6, 1873313359), f, h, t[i + 15], 10, -30611744), p, f, t[i + 6], 15, -1560198380), m, p, t[i + 13], 21, 1309151649), h = l(h, m = l(m, p = l(p, f, h, m, t[i + 4], 6, -145523070), f, h, t[i + 11], 10, -1120210379), p, f, t[i + 2], 15, 718787259), m, p, t[i + 9], 21, -343485551),
p = s(p, a),
f = s(f, r),
h = s(h, d),
m = s(m, u);
return [p, f, h, m]
}
function u(t) {
var e, i = "", a = 32 * t.length;
for (e = 0; e < a; e += 8)
i += String.fromCharCode(t[e >> 5] >>> e % 32 & 255);
return i
}
function p(t) {
var e, i = [];
for (i[(t.length >> 2) - 1] = void 0,
e = 0; e < i.length; e += 1)
i[e] = 0;
var a = 8 * t.length;
for (e = 0; e < a; e += 8)
i[e >> 5] |= (255 & t.charCodeAt(e / 8)) << e % 32;
return i
}
function f(t) {
var e, i, a = "";
for (i = 0; i < t.length; i += 1)
e = t.charCodeAt(i),
a += "0123456789abcdef".charAt(e >>> 4 & 15) + "0123456789abcdef".charAt(15 & e);
return a
}
function h(t) {
return unescape(encodeURIComponent(t))
}
function m(t) {
return function (t) {
return u(d(p(t), 8 * t.length))
}(h(t))
}
function v(t, e) {
return function (t, e) {
var i, a, s = p(t), r = [], n = [];
for (r[15] = n[15] = void 0,
s.length > 16 && (s = d(s, 8 * t.length)),
i = 0; i < 16; i += 1)
r[i] = 909522486 ^ s[i],
n[i] = 1549556828 ^ s[i];
return a = d(r.concat(p(e)), 512 + 8 * e.length),
u(d(n.concat(a), 640))
}(h(t), h(e))
}
function sign(t) {
return f(m(t));
}
'''
js = js2py.EvalJs()
js.execute(js_script)
data = {"departCode": "SHA", "destCode": "XMN", "departDate": "2019-11-19", "trip": 0, "adultNums": 1,
"hasChildren": False, "queryTimes": 0, "signKey": "7d13933b454ebb40b0d6b911e11f1a29", "depDateAndFlightNo": ""}
t = '%s%s%s%s%s' % (data['departCode'], data['destCode'],
data['signKey'], data['departDate'], data['signKey'])
sign = js.sign(t)
data['sign'] = sign
while_cond = False
r = requests.post(
'https://fdspl-traffic.mafengwo.cn/fdspl/v1/flightList/search', json=data)
result = r.json()
if not result['data']['needQueryMore']:
log(result)
else:
while_cond = True
while while_cond:
time.sleep(0.3)
data['queryTimes'] += 1
print(data['queryTimes'])
r = requests.post(
'https://fdspl-traffic.mafengwo.cn/fdspl/v1/flightList/search', json=data)
result = r.json()
if not result['data']['needQueryMore']:
log(result)
break

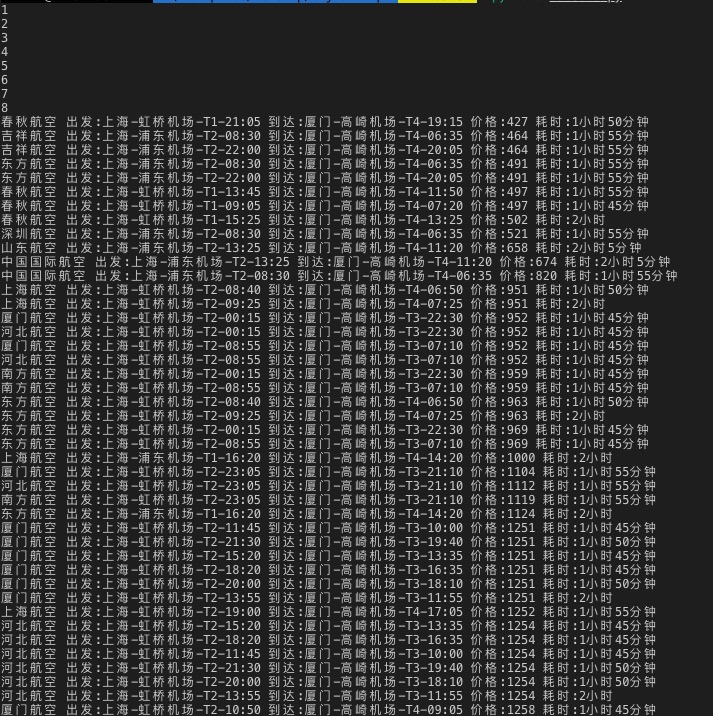

数据结果
结束
至此作案已经结束，欢迎大家多多交流。
